JIS B 1195

Weld bolts

English 1994

0.000

Detailed Information

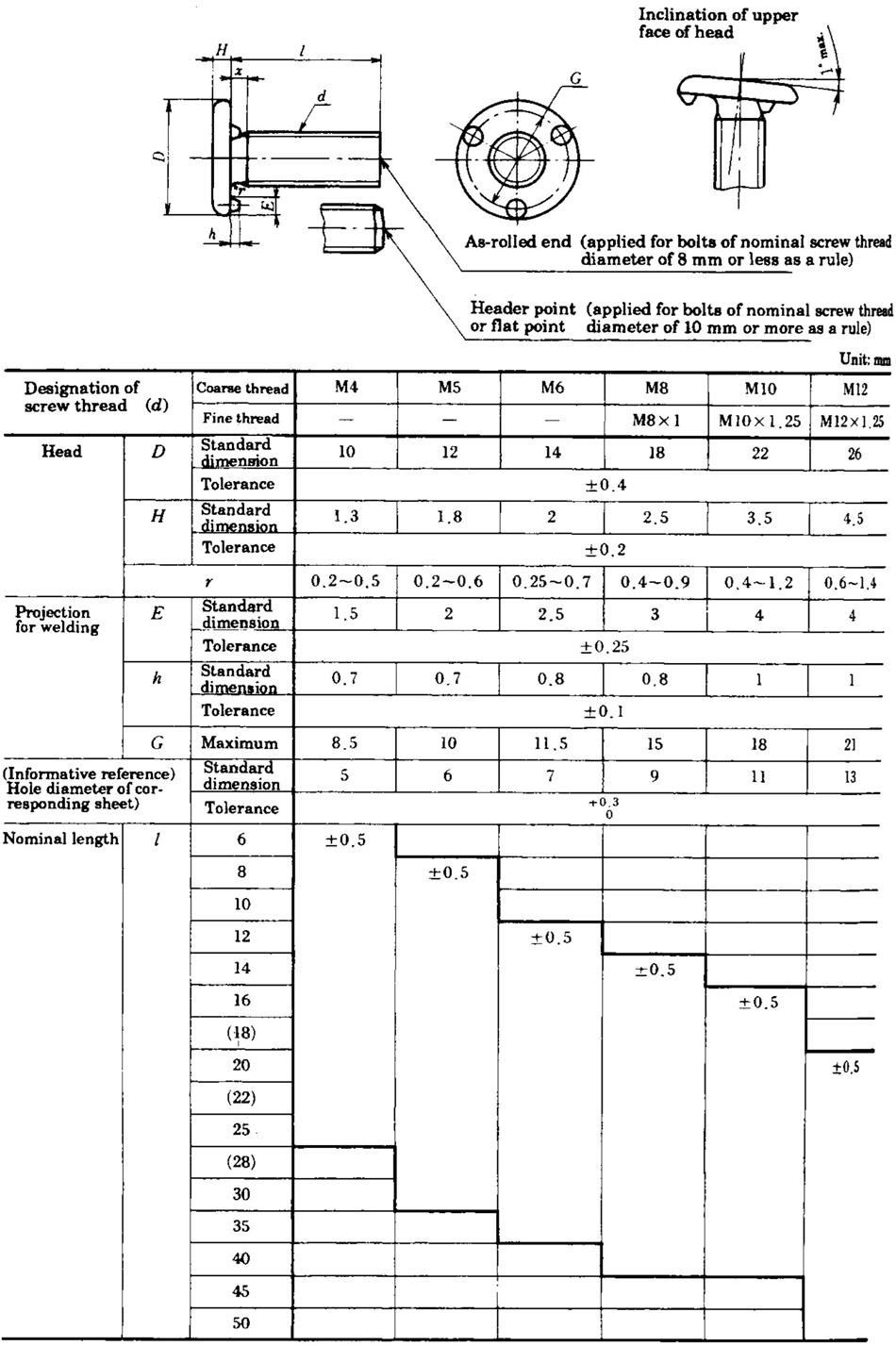

This Japanese Industrial Standard specifies steel weld bolts, hereafter referred to as “bolts”, for general purpose.

This bolt is intended to be projection-welded at its bearing surface side of head for service, but the bolt to be welded at the top surface of head for service is excluded.

Download File

(Log in to download spec.)
